Introduction:

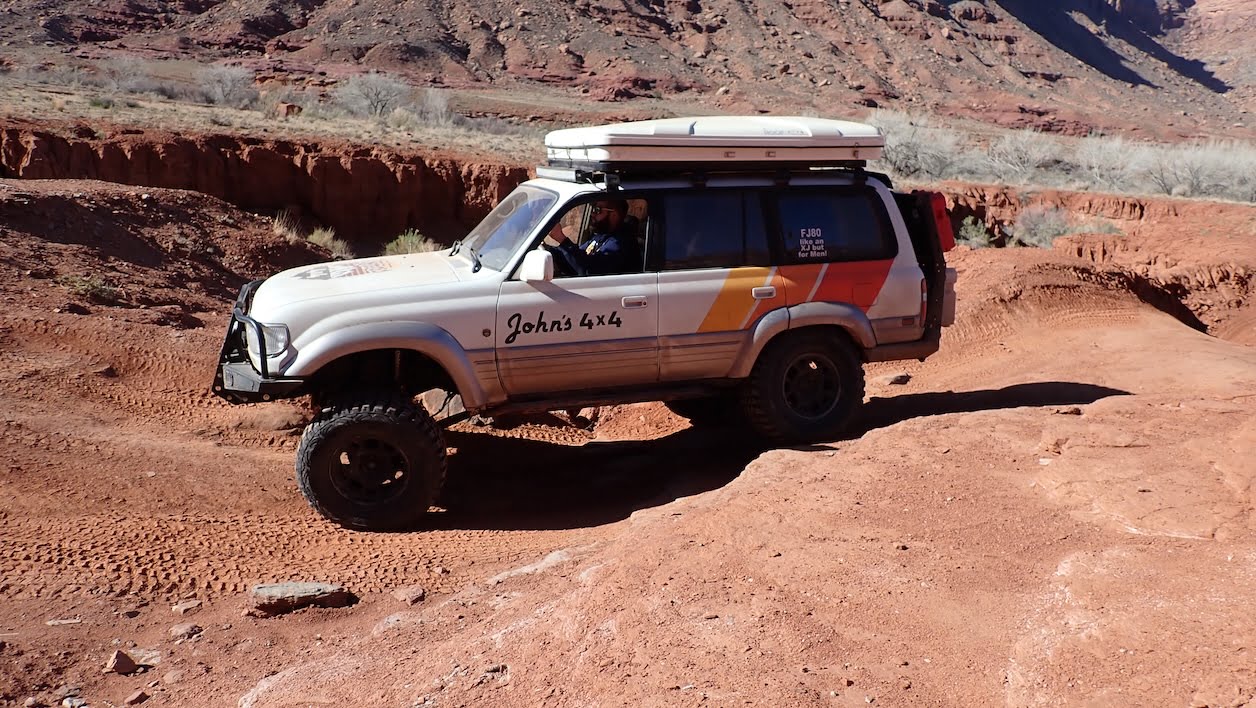

The Toyota Land Cruiser 80 Series—whether you call it the FZJ80, or LX450—it’s a legendary rig. Powered by the ancient but indestructible 1FZ-FE inline-six engine, it’s the ultimate high-mileage warrior, capable of conquering deserts, mountains, and everything in between. But let’s face it: this engine is also a leaking pig. Over time, those 1FZ oil leaks can turn your pristine driveway into a Jackson Pollock masterpiece. Let’s break down the usual suspects, what’s involved in sealing them up, and how to keep your Cruiser’s heart ticking without marking its territory.
Why Does the 1FZ Leak So Much?
At its core, the 1FZ is a robust and overbuilt engine designed for the long haul. But with age and miles, seals and gaskets break down and the engine's design makes some of these a real pain to tackle. Leaving many owners including myself putting these repairs off for as long as we can. Trust me… you can tell I drive an 80 just by looking at my driveway.
Leak #1: Upper Oil Pan
The upper oil pan is notorious for seeping oil, and fixing it isn’t a walk in the park. Here’s why it’s a headache and what you should look out for:
- O-Rings on Drain Plugs
The upper oil pan features several plugs sealed with small O-rings. Over time, these O-rings harden and crack, leading to annoying drips. Replacing them is cheap. Just add it to the bill while you are there. - Oil Level Sensor
While you’re down there, check the oil level sensor gasket. This sensor often weeps oil where it mounts to the pan. A fresh gasket here can save you future headaches but we like to replace the sensor entirely. After all these rigs are coming up on 30 years old. - Sealant Game
The upper oil pan doesn’t use a traditional gasket—it’s sealed with Toyota’s FIPG (Form-In-Place Gasket) sealant. Cleaning off the old sealant and applying a new, even bead takes precision and patience. Skimp here and you’ll be revisiting this job sooner than you’d like. We use FIPG or the Right Stuff Ultra Black. The key is having a perfectly clean surface.
Leak #2: Rear Main Seal
If you’ve got oil dripping from the bellhousing, your rear main seal is the typical offender. Here’s the scoop:
- Labor-Intensive
Replacing the rear main seal means separating the transmission from the engine—a job that requires either a lift or serious elbow grease. - Do It Right
While you’re back there, inspect the flexplate or flywheel for wear and torque down the seal housing properly. Skipping these steps can lead to misalignment or future leaks.
Leak #3: Front Crankshaft Seal
Oil dribbling from the front of the engine often points to the front crankshaft seal. Here’s what to know:
- Inspect the Crankshaft
A worn crankshaft surface where the seal rides can lead to persistent leaks, even after replacing the seal. A repair sleeve might be necessary in extreme cases. - We follow a strict process of using grease and silicon to have a long lasting leak free repair.
Pro Tips for Taming FJ80 Oil Leaks!
- Plan for Downtime
Taming FJ80 oil leaks is not a quick job, so make sure you have the time and tools to tackle them. - Use Genuine or High-Quality Parts
Aftermarket gaskets and seals often don’t hold up as well as OEM parts. Stick with Toyota or reputable brands. - Bundle Repairs
We typically do all of the above in one fell swoop. - Clean Thoroughly
Oil leaks can be sneaky, so clean the engine and monitor for fresh drips to confirm you’ve sealed everything up.
The Bottom Line:
The 1FZ engine in your 80 Series Land Cruiser is a marvel of durability, but oil leaks are part of its charm—or curse, depending on how you look at it. Taming FJ80 oil leaks from the upper oil pan, rear main seal, and front crankshaft seal can be labor-intensive, but it’s a necessary investment to keep your high-mileage warrior running strong. With the right parts, tools, and a bit of patience, you can tame the leaks and restore your Cruiser’s legendary status—without the driveway art installation.
