Introduction:
You walk out to your truck. There’s oil under the front end. Your mind immediately jumps to the worst-case scenario:
“Great. My front main seal is blown.”
Deep breath.
On the 6.7L Powerstroke, there’s a very good chance that’s not what’s happening at all. In many cases, the real culprit is something far less catastrophic — the vacuum pump bolts loosening over time and allowing oil to seep out, making it look like a major front main seal failure.
Let’s talk about what’s actually happening.

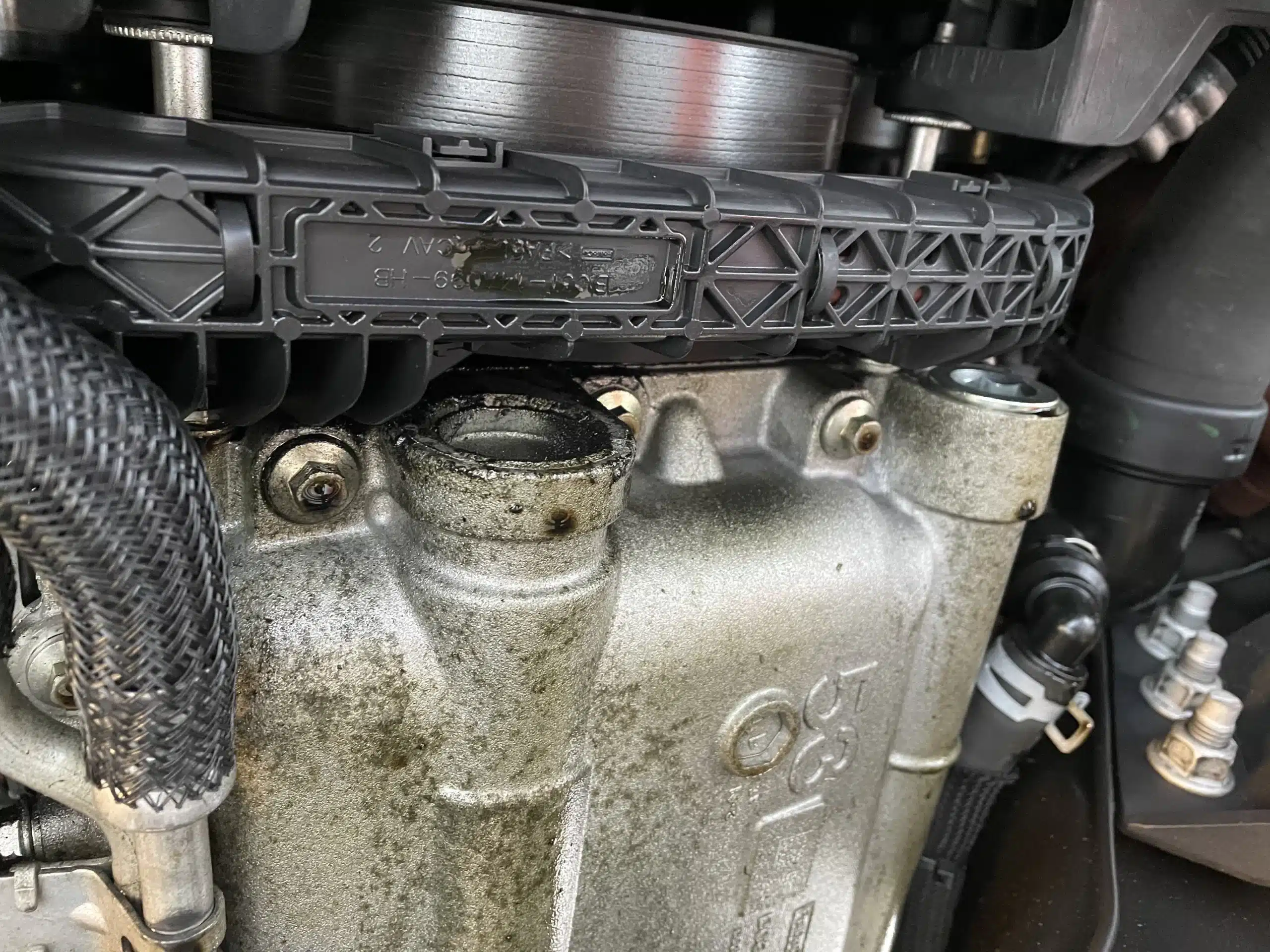

The Real Issue: Vacuum Pump Bolts Loosening Over Time
The vacuum pump on the 6.7 Powerstroke is mounted right at the front of the engine. It’s oil-lubricated and sealed to the front cover with a gasket and several bolts. Over time, thanks to:
- Heat cycles
- Vibration
- Normal engine movement
- Good old diesel torque
…those bolts can begin to back out just enough to compromise the seal.
And once that gasket starts to lose clamping pressure? Oil begins to seep out and run down the front of the motor.
The problem is that oil then travels over:
- The harmonic balancer
- The front cover
- The belt system
- The skid plate
- The frame rail
Which makes it look exactly like a 6.7 Powerstroke Front Oil Leak — Often Owners replace the Front Main only to have the oil continue to drip on there freshly power washed drive way.
Common Symptoms for 6.7 Powerstroke Front Oil Leak
When the vacuum pump bolts start to loosen and leak, you’ll usually see:
- Oil wetness at the front of the engine
- Oil on the crank pulley / balancer
- Spots on the driveway
- Burning oil smell
- A “wet” looking front cover
Lower Mileage Trucks: The Simpler Fix
If it’s caught early and the truck is relatively low mileage, there is a scenario where you can get away with:
- Removing the vacuum pump
- Replacing the gasket
- Cleaning all mating surfaces
- Applying thread locker
- Reinstalling and torquing the bolts properly
If the pump itself is still healthy, this can be an effective and affordable way to address the problem and perform this diesel engine repair.
That said… Most of the time, we recommend going one step further.
The Best Fix: Ford’s Updated Vacuum Pump Kit
Ford recognized this issue and offers a complete updated vacuum pump kit that includes:
- A brand new vacuum pump
- Updated gasket
- New mounting bolts
This kit eliminates the old, worn pump and the risk of the bolts backing out again in the future. Instead of reusing worn components, you’re basically resetting the clock.
At our shop, we typically replace the entire pump using Ford’s vacuum pump kit. Yes, it costs a little more up front than just a gasket.
But it solves the problem for many miles to come and prevents repeat leaks, comebacks, and customer heart ache.
Sometimes the best fix isn’t the cheapest one — it’s the one you don’t have to do twice. No one said diesel engine repair wasn't cheap.
Why Not Just Ignore It?
Oil contamination causes components to wear out prematurely. So what starts as a minor seep can quietly snowball into a full front-end teardown with bonus parts you never asked for.
Fix it early. Save money. Save sanity.
Final Thoughts
If you own a 6.7 Powerstroke and see oil at the front of your engine, There’s a very good chance it’s not your front main seal… it’s the vacuum pump bolts slowly backing out and making a mess.
Catching it early may allow for a simple gasket and retorque fix. But for long-term peace of mind, Ford’s updated vacuum pump kit is the real solution — and the one we trust in the shop.
Let REV Outfitters Team properly diagnose your Diesel trucks oil leaks and fix it right the first time - Diesel Engine Repair - Backed by our 3 year 36,000 mile warranty.
Less leaks. Less stress. More miles.
